Snap-In Valve Stem Installation Procedures

We get a lot emails and calls from customers asking us how to properly install a Snap-In valve stem after dismounting the rim and removing the tire. Avoid installation headaches. We're here to solve your TPMS problems and make the Snap-in valve stem install procedure simple and easy.

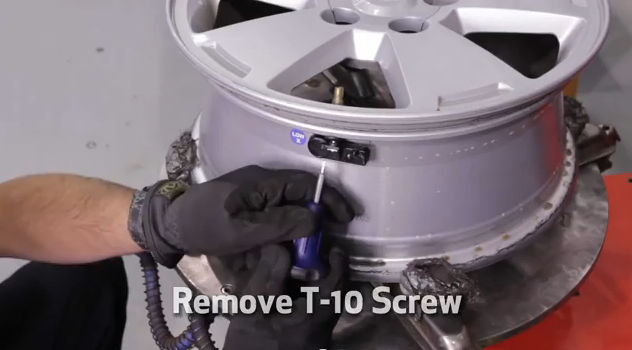

1) Remove the t-10 screw using the Schrader t-10 torque tool.

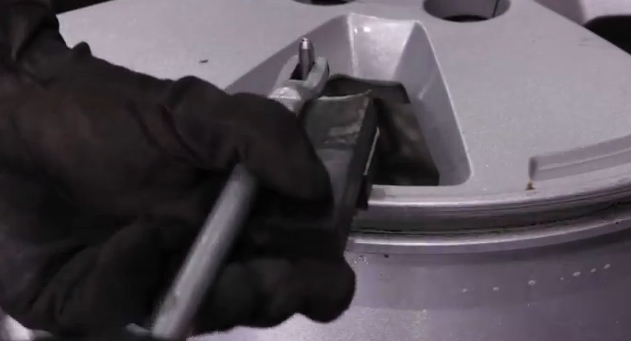

2) Remove the valve with the valve puller. never reuse removed or used valves

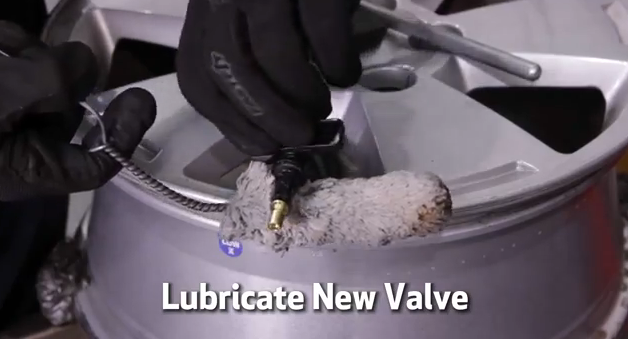

3) Lubricate the new valve.

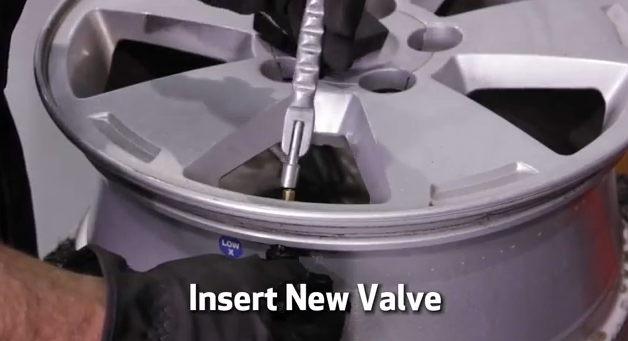

4) Insert new snap-in valve in valve hole.

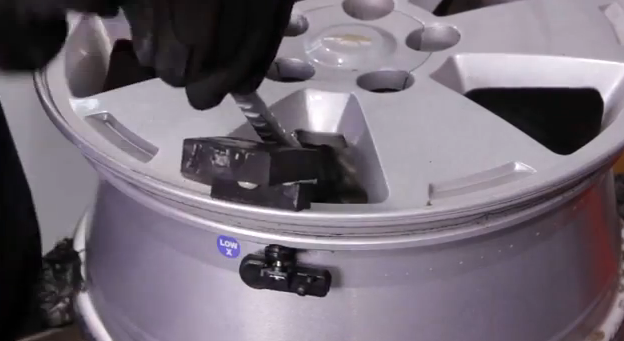

5) Use the rubber block and the valve puller to pull the snap-in valve through the valve hole, ensuring a consistent angle with the valve hole.

6) Put the tire on the rim, making sure the traction point is infront of the sensor.

7) Perform RIST: Remove, Inspect Snug Torque of the wheel and rim prior to remounting the tire on the vehicle.

8) Mount the tire on vehicle.
