Introducing the Huf IntelliSens Universal TPMS Sensor



Today, there are over 180 different TPMS sensor part numbers and keeping the right sensors in inventory, or determining the correct OEM application for a vehicle can be time consuming, difficult, and costly. To counteract these issues and help customers get back on their way quickly, Huf has created the IntelliSens Universal TPMS sensor.

The Huf IntelliSens Universal TPMS sensor is configurable, not programmable. This means that information is already stored on the IntelliSens and the correct protocols only need to be activated to make the sensor compatible with the vehicle. The configurable sensor concept saves valuable time since the entire set of protocols do not need to be programmed onto a blank sensor.

Huf is an original equipment TPMS manufacturer to several premium automotive brands worldwide including: Audi, BMW, Ferrari, Lamborghini, Porsche, and more. The Huf IntelliSens is built to meet or exceed original equipment quality standards for the automotive market.

Huf IntelliSens Sensor Advantages:
  • Only 5 part numbers to ensure over 80% market coverage
  • Only configurable universal sensor available in the market
  • Patented pending 3 second configuration is more than 10 times faster than the competitive programming process
  • Advanced software features include: temperature readings, rapid pressure loss, and autolocation support (tire position identification)
  • Patented design to protect sensor against damage during tire installation
  • Angle adjustability of the IntelliSens allows the sensor and valve to be a perfect fit for all wheel/tire configurations
  • Battery sleep mode to prolong battery life
  • Copy/clone functionality
  • Safety lock ensures security/protection function for sensors and reduces future sensor malfunction
  • Available with both metal and rubber valves
  • Designed and built in Germany
  • Three years limited warranty
Tools
  • ATEQ and Bartec Tools
  • Continuous improvement through close cooperation with global leading TPMS diagnostic tool manufacturers
  • Technomoto
Programming Process
  • Simple programming/configuration; only 3 seconds to configure sensor
  • Sensor is delivered with protocols
  • A programming device is required to configure/lock in the correct protocol
  • Copying of OE sensors is possible
  • Sensor transmits only one protocol

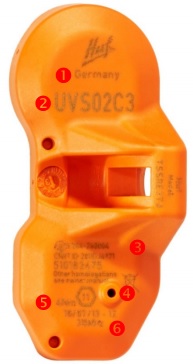

Product View and Details

  1. Country of origin
  2. Product part number
  3. FCC license number
  4. Sensor pressure port
  5. Torqueing spec
  6. Radio frequency

Nomenclature

The Huf IntelliSens utilizes 5 unique part numbers to cover over 80% of TPMS enabled vehicles on the market. Each IntelliSens part number can be broken down to reveal information about that particular sensor unit.

Example: UVS01C4V21
  • UVS: Universal Sensor
  • 01: Sensor Number
  • C: Valve type (C-Metal Clamp; S-Rubber Snap Valve)
  • 4: Frequency (3-315MHz; 4-433MHz)
  • V21: Valve Included (01-Gen 1; 21-Gen 2)
